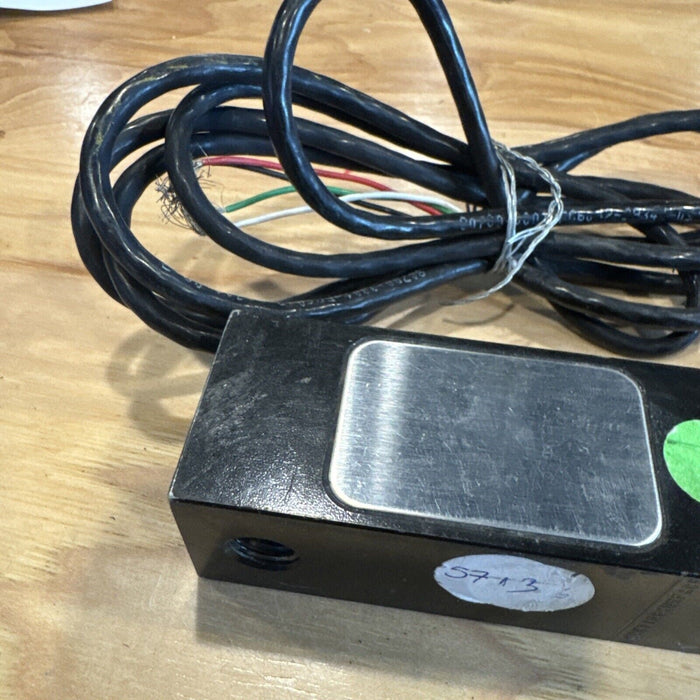

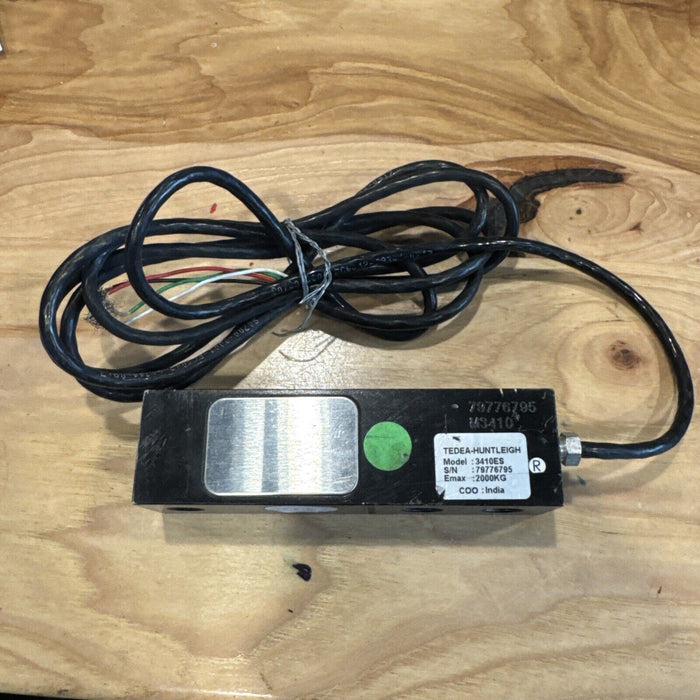

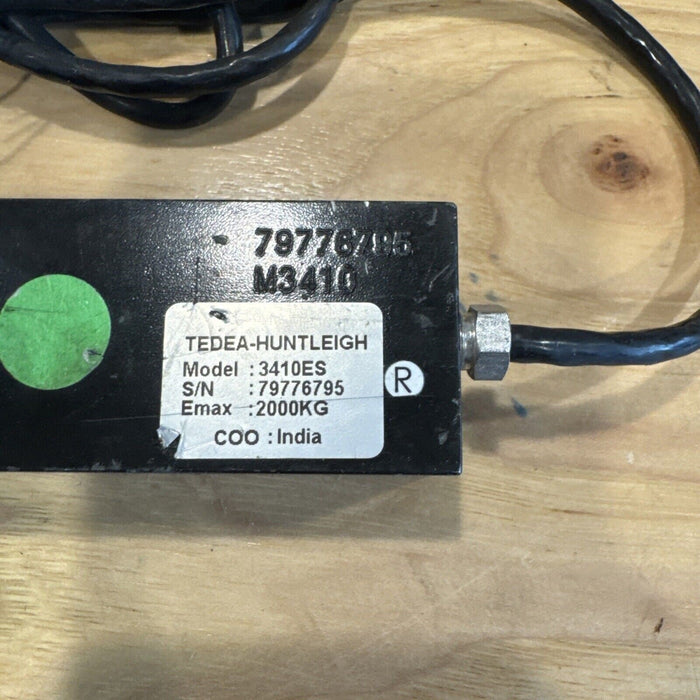

Tedea 3410 ES Single-Ended Beam Load Cell

We are unsure if this is new or open box.

The Model 3410 is a low profile shear beam load cell designed for high accuracy platform scales, pallet scales and process weighing applications. It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Approved to OIML, NTEP standards.

For hazardous environments, this load cell is available with EEx ia IIC T6 level of European approval. Nickel plating and full environmental sealing assures long-term reliability. A stainless steel option is available for the lb versions for use in harsh or corrosive environments.

The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.

Optional for 3410 ES

• EEx ia IIC T6 hazardous area approval

• FM approval available


APPLICATIONS

• Livestock cattle chute
• Floor scale
• Silo and Tank
