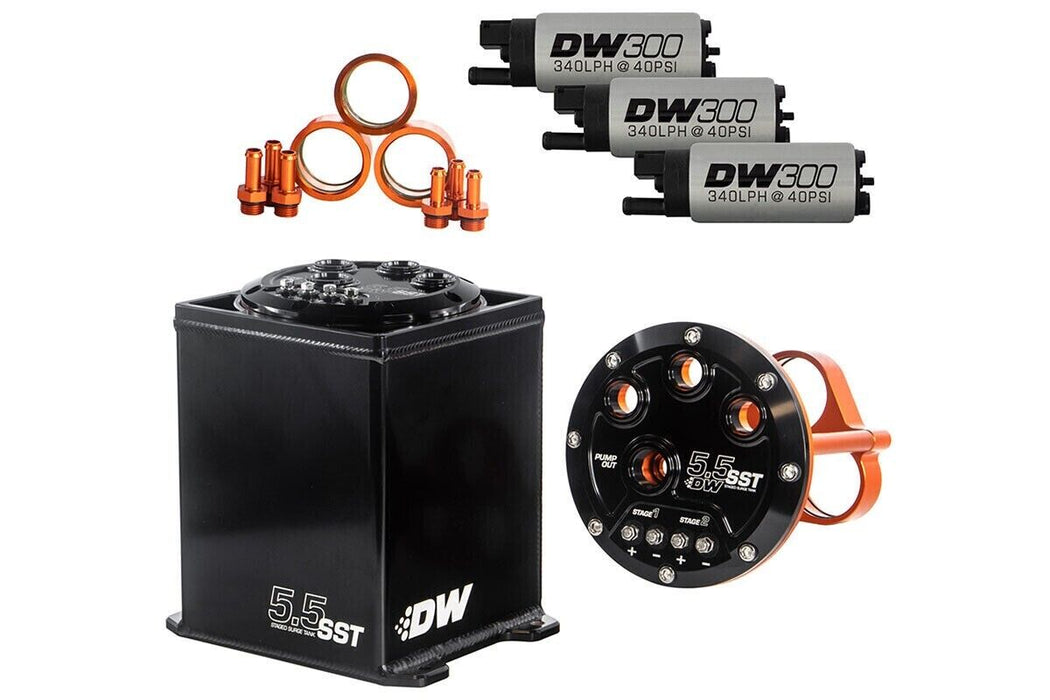

DeatschWerks 5.5L Staged Surge Tank Includes 3 DW300 Fuel Pumps 6-301-55ST

DW’s staged surge tank is engineered to provide massive amounts of fuel flow reliably and consistently for racing applications. The DW 5.5 Liter Staged Surge Tank System includes the functionality of traditional surge tanks, with increased flexibility. This has been achieved by moving the pumps inside with a merged single point outlet that allows the use of single, dual, or triple pump configurations to meet fueling needs from 500hp to 2000hp.

• Configurable for single, dual, or triple pumps
• Compatible with 39mm and 46mm pumps
• Single or Dual Stage Capability
• -10 AN O-Ring Boss Outlet
• High Amperage Threaded Stainless Steel Terminals



Specifications

Weight w/o Pumps: 8.75 pounds (3.65 kilograms)

Material: Anodized Aluminum

Modular Design: One, Two or Three In-Tank Pumps

Pump OD Fitments: 39mm or 46mm

Connector Terminal: M5 Stud x 4

Pump Outlet Fitting: -10 AN O-Ring Boss

Return/Inlet Fittings: -8 AN O-Ring Boss x 3

Included Pumps: DW300 x3
