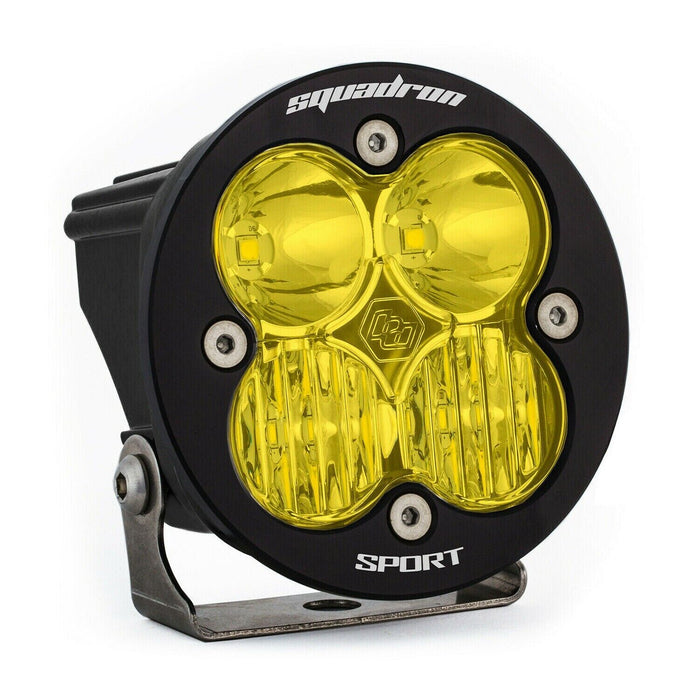

Baja Designs 580013 Squadron-R Sport Black LED Auxiliary Light Pod
Description
- SQUADRON-R SPORT BLACK LED AUXILIARY LIGHT POD
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
- Product Type: Squadron-R Sport LED Light Pod
- Description: Round; Driving/Combo; Amber
- Beam Pattern: Driving/Combo
- Lens Color: Amber
- Lighting Modes: Beam
- Light Quantity: 1
- Lighting Type: Forward Projecting
- Lighting Technology: LED
- Lighting Quantity: 4
- 2439 / (6.5, 112?) / 374
- Brightness (Lumens): 3,150
- Wattage (W): 26
- Amperage Rating (A): 2
- Average Rated Life (hr.): 49,930
- Housing Color: Black
- Housing Material: Powder Coated Cast Aluminum
- Lens Material: Hardcoated Polycarbonate
- Bezel Material: Billet Machined Aluminum
- Mounting Hardware Included: Yes
- Mounting Hardware Material: Stainless Steel
- Wiring Harness Included: No
- Overvoltage Protection: Built-In
Dimensions
- Length (in.): 3.5
- Height (in.): 3.5
- Depth (in.): 2.77
- Weight (lbs.): 0.75
Standards & Compliance
- Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
- Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
- Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
Specifications:
OVERVIEW
The Squadron-R Sport off-road lights light up the trail on your nighttime off-roading excursions! The Squadron Sport uses four Cree LEDs to produce 3,150 lumens at 26 watts to produce crisp, clear light that pierces the darkness and improves visibility in any and all conditions. This R model is optimized for aftermarket bumpers featuring a 4-inch-round hole.
Choose from a variety of lighting patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3).
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2).
Spot: A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7).
NOTES
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
| Depth (in.): 2.77 | Weight (lbs.): 0.75 |
| Housing Color: Black | California Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. |
| Lens Color: Amber | Brand: Baja Designs |
| Wattage: 26 W | Lumens: 3,150 |
| Manufacturer Part Number: 580013 | Lighting Technology: LED |
| Housing Material: Powder Coated Cast Aluminum | Lens Material: Hardcoated Polycarbonate |
| Bezel Material: Billet Machined Aluminum | Length (in.): 3.5 |
| Height (in.): 3.5 |
