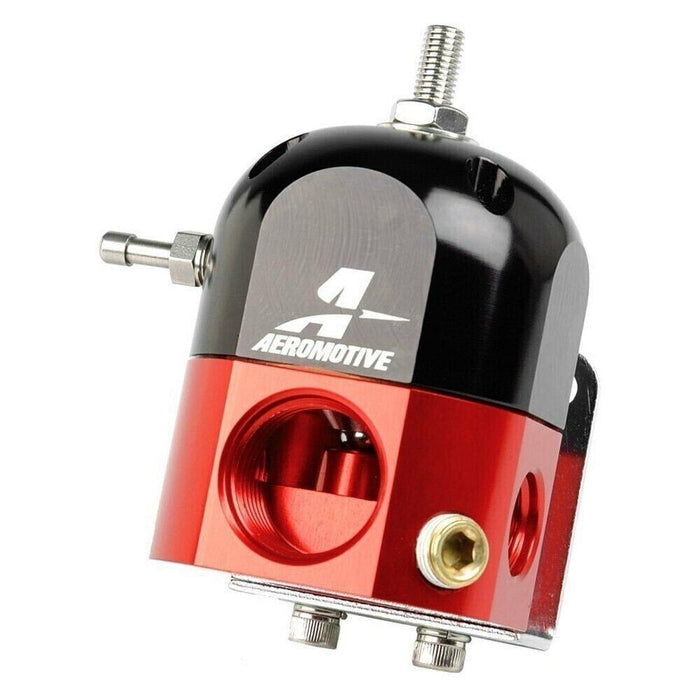

Aeromotive 13204 A1000 Carbureted Bypass Regulator
Overview:
A1000 Carbureted Bypass Regulator - 2-Port.
- A1000 carbureted bypass regulator
- adjustable from 3-15 PSI
- perfect for naturally aspirated engines
- bypass desing provides the ultimate
- dynamic fuel delivery system.
The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or ?blow-through? supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13204 provides (2) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.?Note: Requires AN-08 return line from bottom of regulator back to top of the tank.
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Outlet Port Diameter (In.) | 0.375 |
|---|---|
| Port Quantity | 3 |
| Prop 65 (C, R or CR) | CR |
| Prop 65 Flag | Yes |
| Brand: Aeromotive Fuel System | Manufacturer Part Number: 13204 |
| MPN: 13204 | UPC: 684980000320 |
