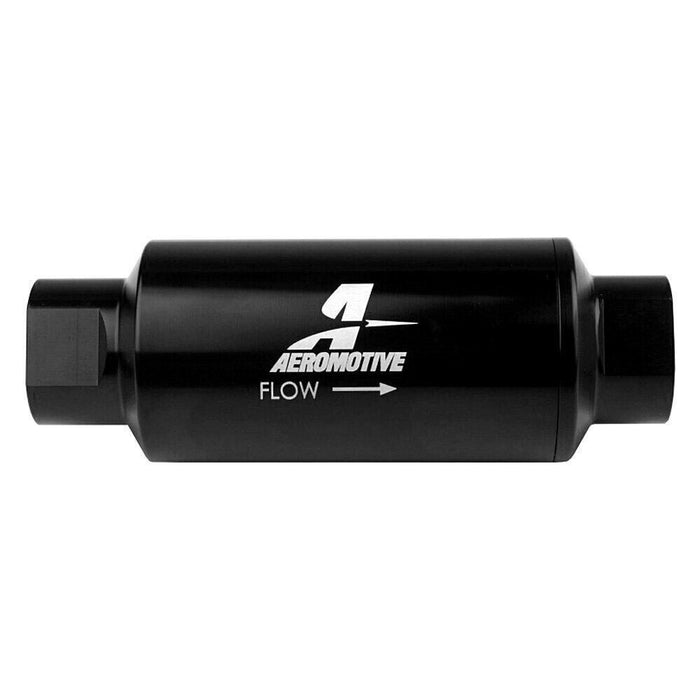

Marine 10m Microglass Outlet ORB-10 Fuel Filter

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 ? 3,000 plus HP applications, this filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you?ve come to expect from all Aeromotive components.

• High-flow, 10-micron Microglass (fine) replaceable element.
• Compatible with gasoline and alcohol fuels.
• Impervious to water contamination.
• Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes.
• Compact size: 5.5? long x 2? diameter

• Fuel Filter Style: Inline
• Inlet Quantity: One
• Fuel Filter Inlet Size: -10 AN
• Inlet Attachment: Female straight cut O-ring
• Outlet Quantity: One
• Fuel Filter Outlet Size: -10 AN
• Outlet Attachment: Female straight cut O-ring
• Filter Element Included: Yes
• Smallest Particle Filtered: 10 microns
• Filter Element Material: Microglass
• Filter Housing Material: Billet aluminum
• Filter Housing Finish: Black anodized
• Overall Length (in.): 5.500 in.
• Outside Diameter (in.): 2.000 in.
• Mounting Bracket Included: No
• Fittings Included: No
• Clamps Included: No
• Maximum Fuel Pressure (psi): 250
• Quantity: Sold individually
