ACT T2S-M03 for EVO 8/9 5-Speed Only Mod Twin XT Street Kit Unsprung 875ft/lbs

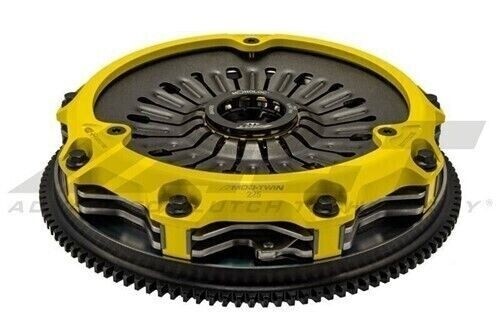

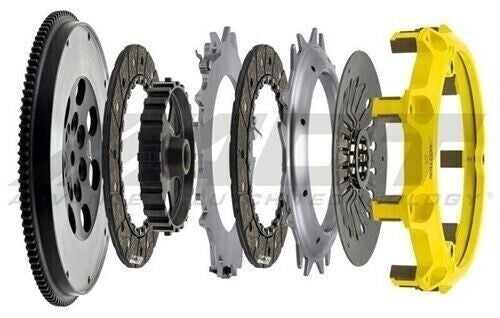

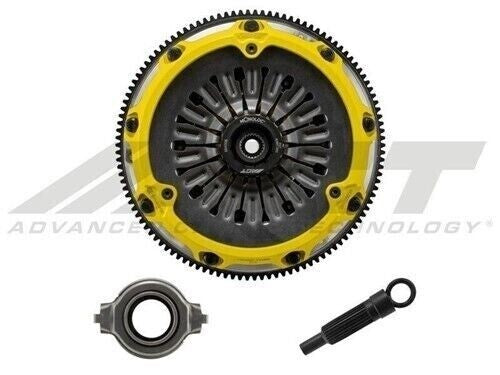

ACT T2S-M03 for EVO 8/9 5-Speed Only Mod Twin XT Street Kit Unsprung 875ft/lbs. T2S-M03 Mod-Twin 225 XT Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD’s by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

Specifications

•

• Item Description: Mod-Twin 225 XT Rigid Street
• Product Weight (lbs.): 28.1
• Torque Capacity (ft/lbs.): 875
• Torque Capacity Over OE: 146%
• Disc Material: Organic
• Clutch Disc Diameter (Inches): 8.8
• Clutch Disc Diameter (Millimeters): 225
• Input Shaft Diameter (inches): 1
• Pressure Plate Type: Xtreme
• Warranty: 12 Months
• SFI: 1.2
