Radium Fuel Pump Hanger EVO 8 9 w/o Pumps Walbro F90000267/274 E85 20-0345-00

by Radium
$446.45 - $446.45
$446.45
$446.45 - $446.45
$446.45

*NOTE: THIS DOES NOT INCLUDE ANY PUMPS

This comprehensive kit includes everything required to construct a high performance fuel delivery system for the 2003-2007 Mitsubishi EVO 8-9. The Radium fuel pump hanger, plumbing kit, fuel rail, pulse damper, gauge, and pressure regulator completely replace the restrictive OEM fuel system with a setup capable of supporting well over 1,000hp. Fuel injectors are NOT included. It is highly recommended to install this kit as one complete system. Mixing and matching the components of this kit with OEM components will result in a system that is not fully optimized for high performance.

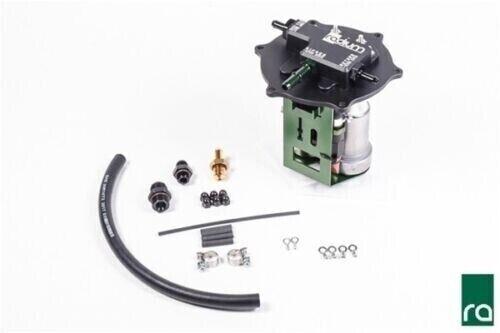

At the heart of the system is the Radium EVO 8-9 fuel pump hanger (shown below). The fuel pump configuration can be selected using the drop-down menu above.

From the fuel pump hanger, the feed line kit includes a new -8AN PTFE feed line which is plumbed to a Radium in-line fuel filter. The filter is mounted to the chassis under the car using a specially designed bracket that does not require any cutting or drilling for installation. A selection of fuel filter elements are available. A second 8AN hose routes from the filter outlet up to the fuel rail.
*The factory feed line is used as the new return line*
The -8AN feed line travels from the filter up to the Radium EVO 8-9 Fuel Rail, as shown below. All necessary adapter fittings and pressure gauge are included.
Mounted on the fuel rail is the Radium Direct Mount Regulator ((DMR) and a Radium FPD-R fuel pulse damper. The fuel pressure regulator return uses a short -6AN prefabricated PTFE hose and adapter fittings to connect to the factory fuel feed line, using it as the return line.
The Radium Fuel Delivery System is E85 safe. Fuel injectors are not included.


Manufacturer Part Number: 20-0345-00 Modified Item: No
Custom Bundle: No Non-Domestic Product: No
Brand: Radium
