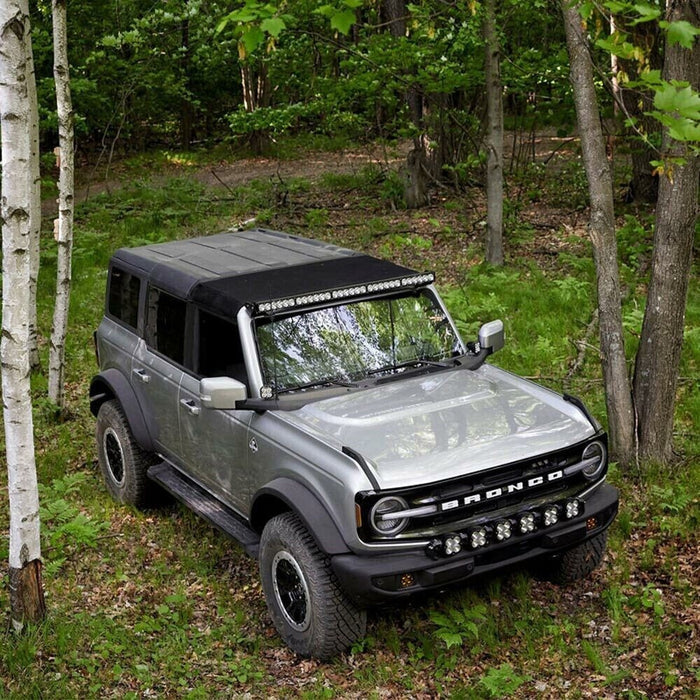

Baja Designs OnX6+ Roof LED Dual Control Light Bar Upffiter Kit for 21+ Bronco

he Baja Designs 447759UP OnX6+ Dual Control Amber LED Light Bar Roof Mount kit is a premium lighting upgrade for your new Ford Bronco. This version includes the Upfitter wiring harness, which does not have a built in switch and is meant to be wired directly to existing upfitter auxiliary switches. If you want the standard toggle switch harness, purchase part number 447759 (listed separately). The 50-inch OnX6+ Light Bar features a rugged and sturdy design. The ultra high output gives you unparalleled visibility in even the darkest off-road conditions. Along with the OnX6 Plus Light Bar, this kit includes custom vehicle specific brackets, a wiring harness, all required mounting hardware.

Note: This kit will only work if your Bronco DOESN’T have roof rails and crossbars.

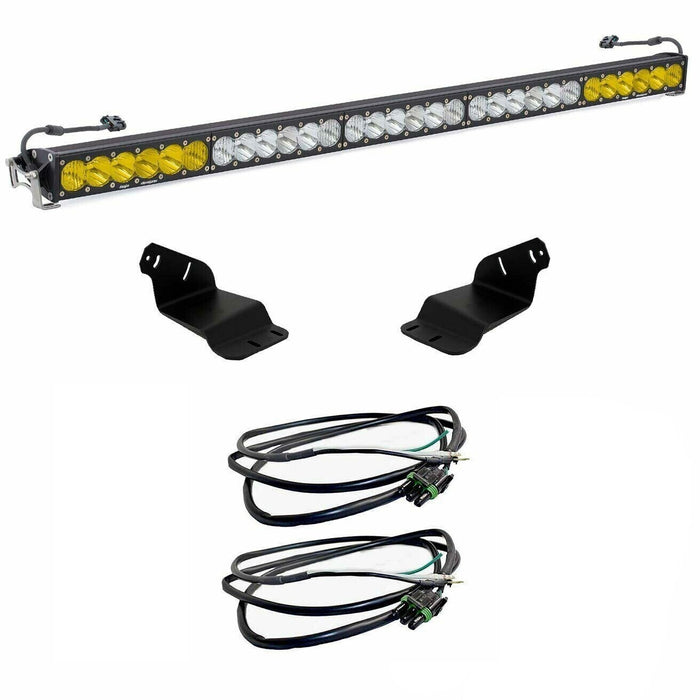

Kit Includes:

• • OnX6+ 50” LED Light Bar
  • Bronco Mounting Brackets
  • x2 Upfitter Wiring Harness

Carefully designed to be the ultimate roof mounted light bar kit for 2021 Ford Bronco. The 50” OnX6+ Dual Control combines far reaching, high speed spot reflectors with the Baja Designs Driving Combo lens for a smooth yet intense pattern that will light up the whole trail. The Dual Control functionality allows for you you to control the outer two sections and the inner three independently form each other. With this functionality you will be able to meter your light bar for all situations!

This kit includes a 50” OnX6+ Dual Control LED Light Bar, vehicle specific mounting brackets, hardware, and x2 upfitter wiring to make installation a breeze. No cutting, trimming, or drilling is required and all wiring is pre-sized for your vehicle.

Note: This kit will only work if your Bronco DOESN’T have roof rails and crossbars.

Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications(Per Light):
Lumens: 39,910
Wattage/Amps: 346W / 28.2A
Dimensions: 50? x 4.29? x 2.69?
Weight: 11.45 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Fits: Ford Bronco 2021, 2022
