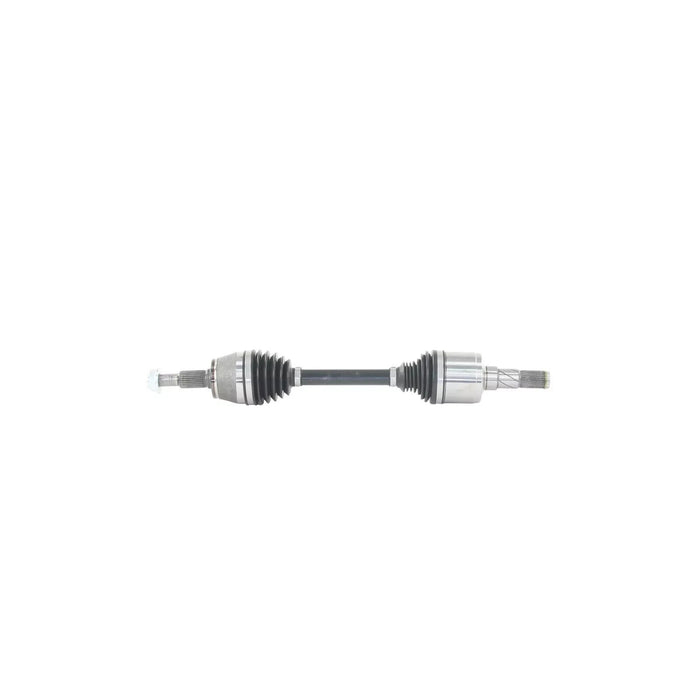

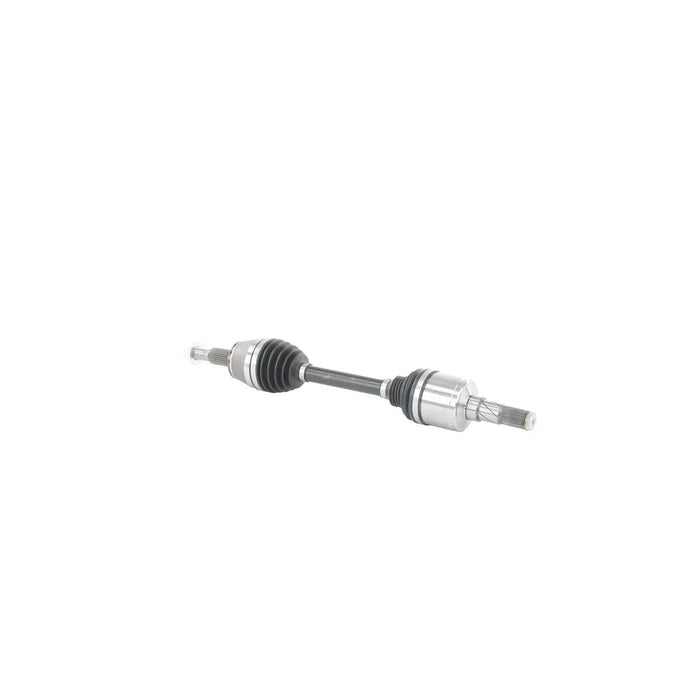

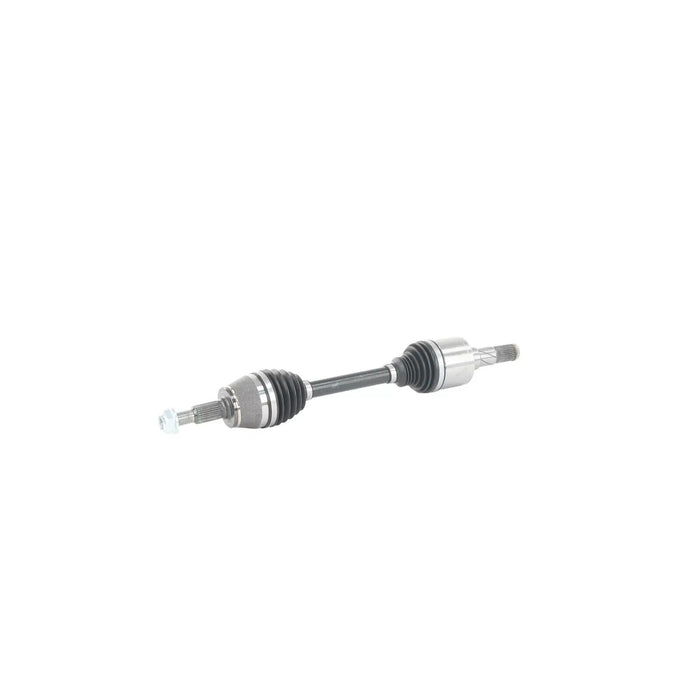

For Jeep Grand Cherokee 05-10 SurTrack Front Driver Side CV Axle Shaft

Product Details

Front Driver Side CV Axle Shaft (CH-8101HDX) by SurTrack®. This product features a brand new construction with precision machined and heat treated center-shafts, CV joints, bearings and races. The CV axle shaft by SurTrack is manufactured with high quality neoprene rubber boots to protect against the elements on and off-road conditions and fastened with stainless steel straps to meet the stringent engineering standards.

Specifications:

• Abs Tone Ring Included: No
• New Or Remanufactured: New
• Axle Nut Height (in): 7/8
• Axle Nut Height (mm): 23
• Axle Nut Head Type: Hex
• Axle Nut Hex Size (in): 1 3/8
• Axle Nut Hex Size (mm): 35.5
• Axle Nut Length (in): 1 5/8
• Axle Nut Length (mm): 40.99
• Axle Nut Locking Type: Self-Lock
• Axle Nut Thread Size: M24*2
• Boot Material: Neoprene
• Inboard Joint Type: Male
• Inboard Shaft Connection Style: Spline
• Number Of Inboard Splines: 29
• Number Of Outboard Splines: 29
• Outboard Joint Type: Conventional
• Outboard Shaft Connection Style: Spline
• Overall Compressed Length (in): 26 9/16
• Overall Compressed Length (mm): 674
• Overall Extended Length (in): 28 11/16
• Overall Extended Length (mm): 728.5

Features:

• Designed from the ground up to meet or even exceed all OEM requirements in fit, form and function
• Engineered to work at varying angles, constant rotational speeds, without friction and play
• Neoprene rubber boots ensure high protection against the elements on and off-road conditions
• Fastened with stainless steel straps to comply the stringent engineering standards
• Precision machined and heat treated center-shafts, CV joints, bearings, and races
• CV joints are packed with high-temperature, high performance moly grease
• Torture tested to failure to ensure maximum durability and outstanding performance
• Comes with all necessary hardware for professional and easy installation

Includes:

• CV Axle Shaft
• Axle Nut

The SurTrack CV axle shaft transfers power from the transmission to the drive wheels of a vehicle. It is designed to operate at varying angles, constant rotational speeds, without friction and play. The axle shaft is manufactured in accordance with the stringent engineering standards to meet or even exceed all OEM requirements in fit, form, and function. The product features a brand new construction with precision machined and heat treated center-shafts, CV joints, bearings and races.

Made with high quality neoprene rubber boots, the axle shaft is properly protected against the elements on and off-road conditions and are fastened with stainless steel straps to comply the stringent engineering standards. The axle shaft by SurTrack is torture tested to failure to ensure maximum durability and excellent performance which will last for years. The CV joints are packed with high-temperature, high performance moly grease. The SurTrack axle shaft comes with all necessary hardware to provide professional and easy installation.

Replaces Original (OE) Part #:

CH-8101HDX
